ShowerSMART Installation
Thanks for purchasing the ShowerSMART! We can't wait to see how you organize your shower. Below, we'll show you how to install anywhere in your shower. Still have questions or issues? Let us help!
SMART people don’t wing it — they template it.
What You'll Need
-
Pencil
-
Tape
-
Straight Edge/Level (optional)
Installation Steps
We've broken down the steps below if you need help with a specific step or two.
STEP 1
Congratulations! You've completed Step 1 by scanning the QR code on your Installation Template. Give yourself a pat on the back and continue with Step 2.
STEP 2

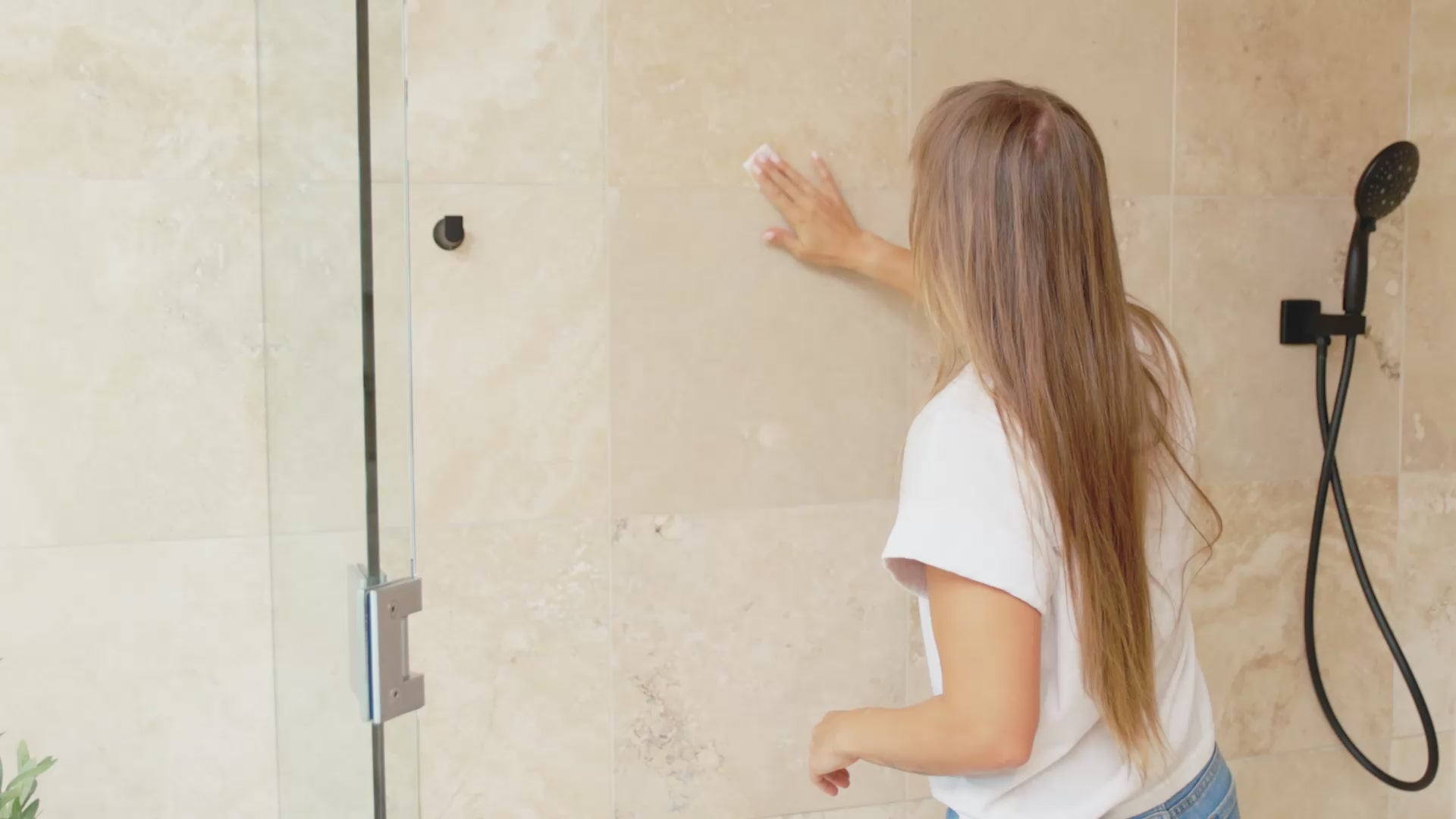

Use the included alcohol wipe to clean your tile surface of any soap scum or dirt. Let it dry completely—precision starts with a clean slate.
STEP 3

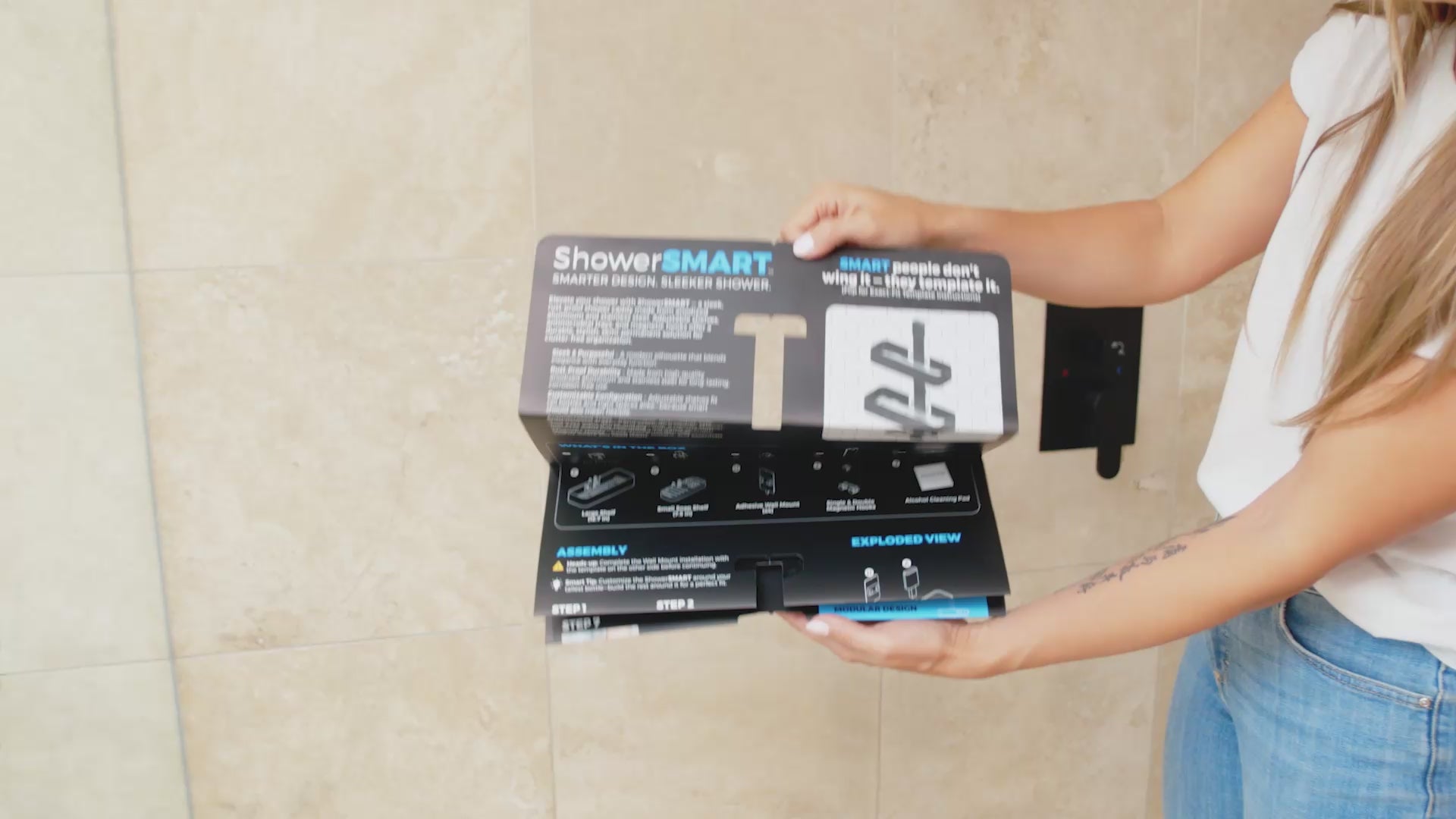

Tape the template flat against the wall where you want your ShowerSMART to live. Use vertical grout lines to help guide vertical placement, and avoid placing the T-shaped cutouts directly over grout as much as possible.
STEP 4

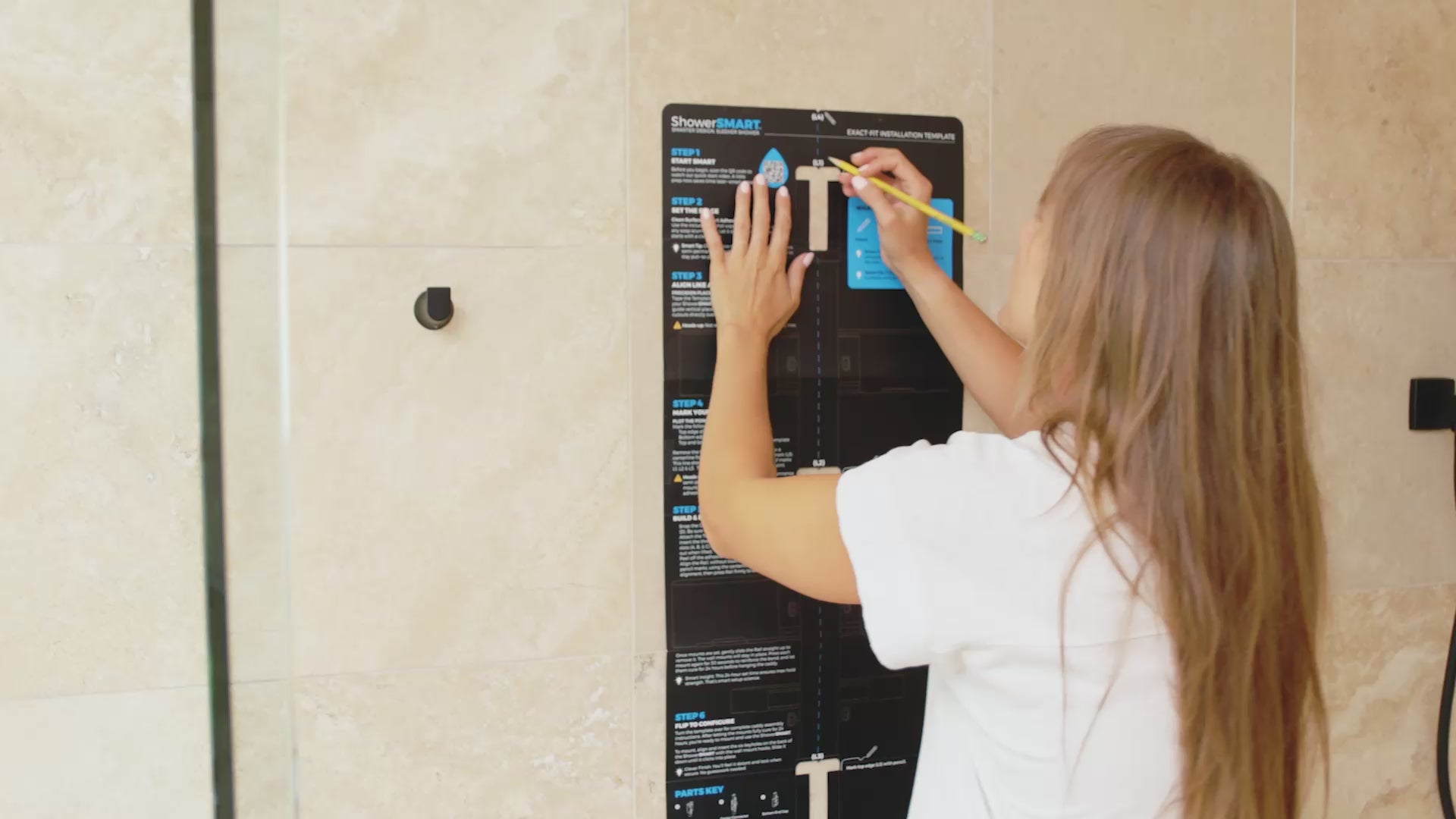

Trace the following, lightly, with a pencil. Top edge of the three mount slots (L1, L2, and L3) Top and bottom center notches of template (L4 & L5)
STEP 5

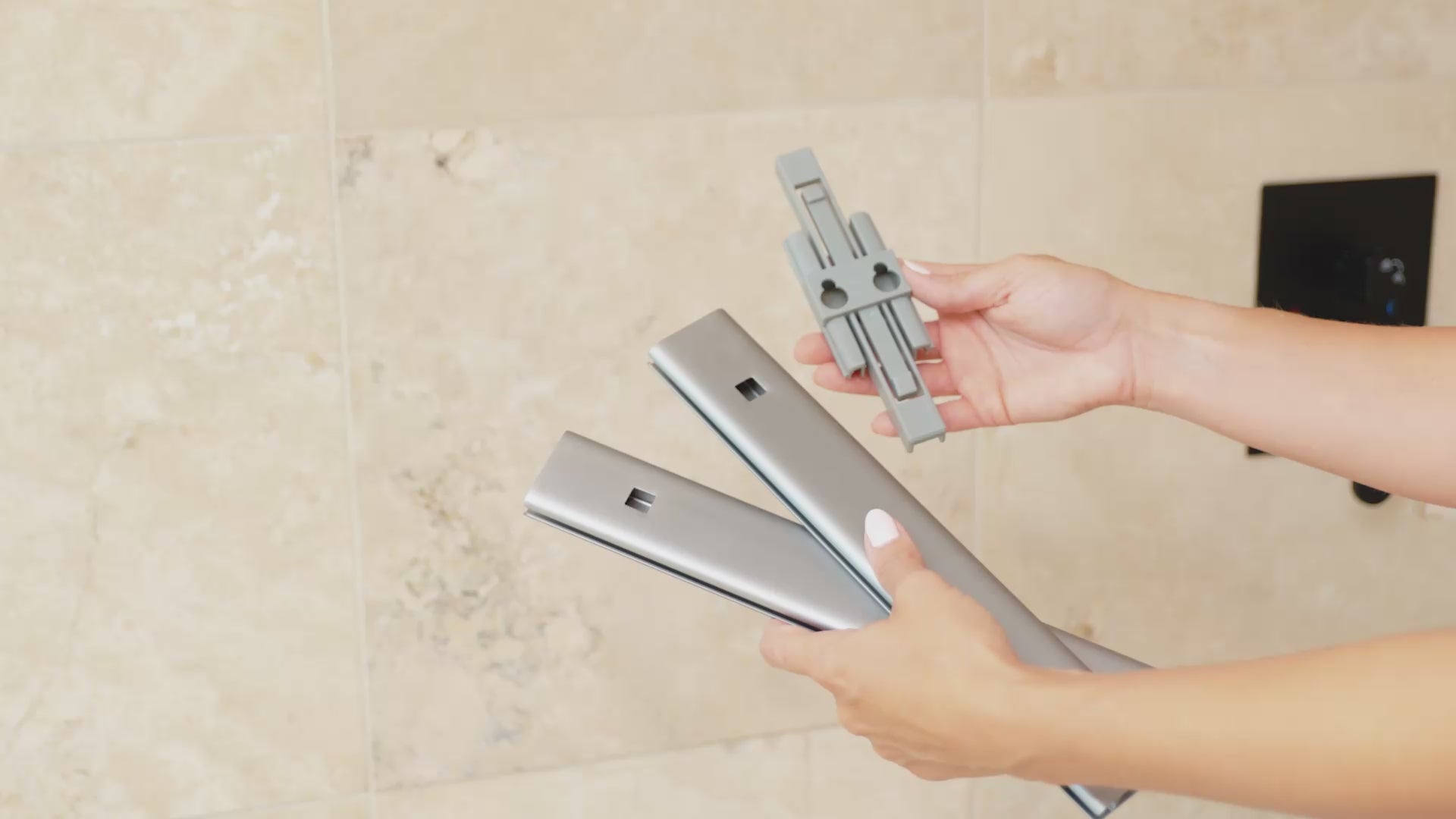

Snap the Center Connector (B) between the two Rails (D). Be sure the connector snaps into the notch. Attach the TOP (A) and BOTTOM (C) End Caps with arrows facing up. Insert the three Adhesive Wall Mounts (H) into the key slots (A, B, & C) with the small tabs pointing down. They will click into place and not fall out when the rail is lifted.
STEP 5 (cont'd)

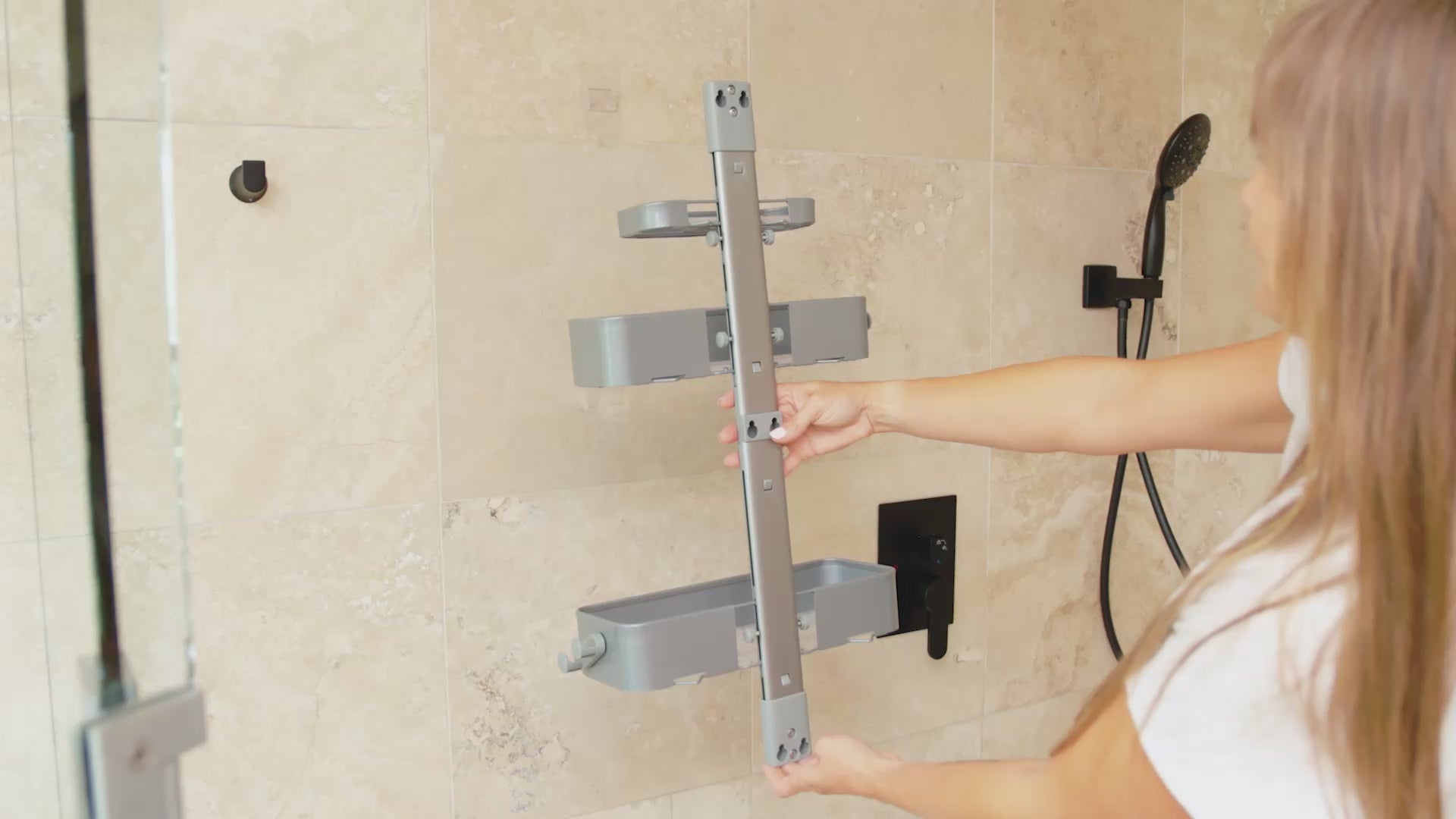

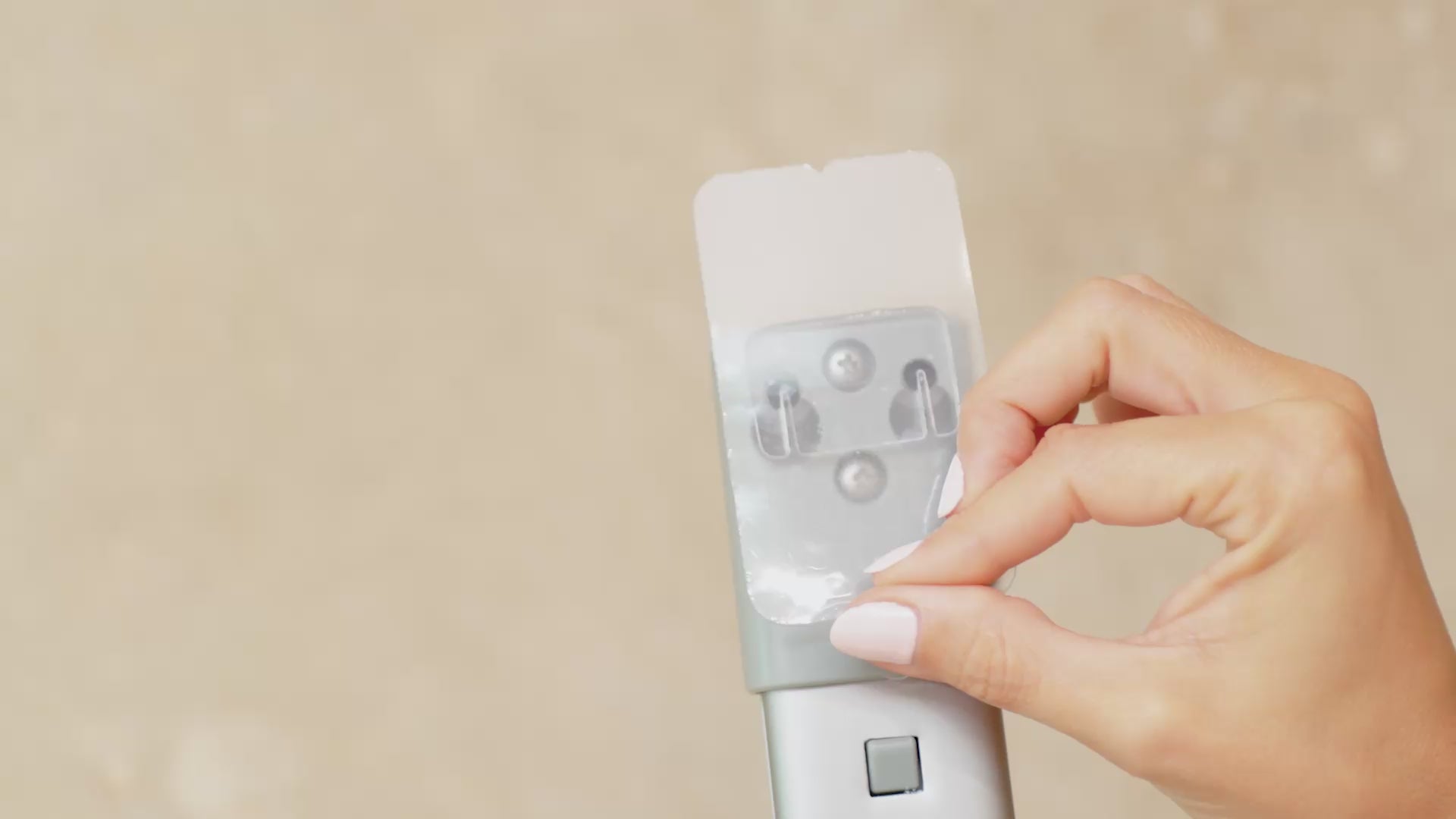

Peel the adhesive backings off the Wall Mounts. Hold the assembled Rail just off the wall. Align the top of the Wall Mounts with the pencil marks from template L1, L2, and L3. Once aligned, press firmly. Once Wall Mounts are set, gently slide the Rail straight up to remove it. The Wall Mounts will stay in place. Press each mount again for 30 seconds to reinforce the bond, and let them cure for 12 hours before hanging the caddy.
STEP 6
After letting the mounts fully cure for 12hours, you’re ready to install and use the ShowerSMART. Remove End Caps A & C, then proceed to next step.
STEP 7
Connect both Rails (D) to Center Connector (B) until they snap into the notch. (Already completed for template installation)
STEP 8

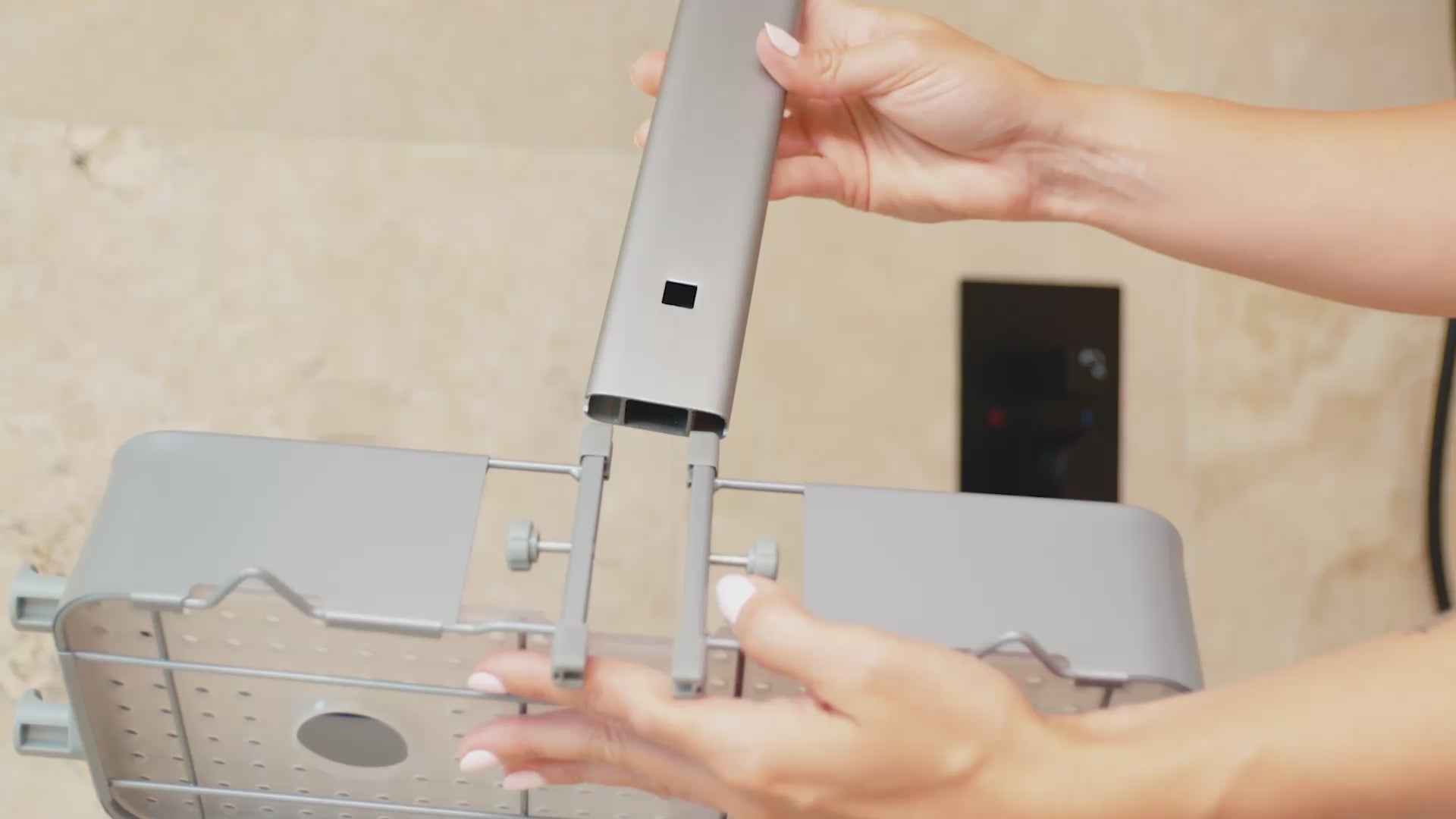

Slide shelves (E, F, and G) into Rail (D) channels from the top and the bottom. Play with the configuration to suit your needs.
STEP 9

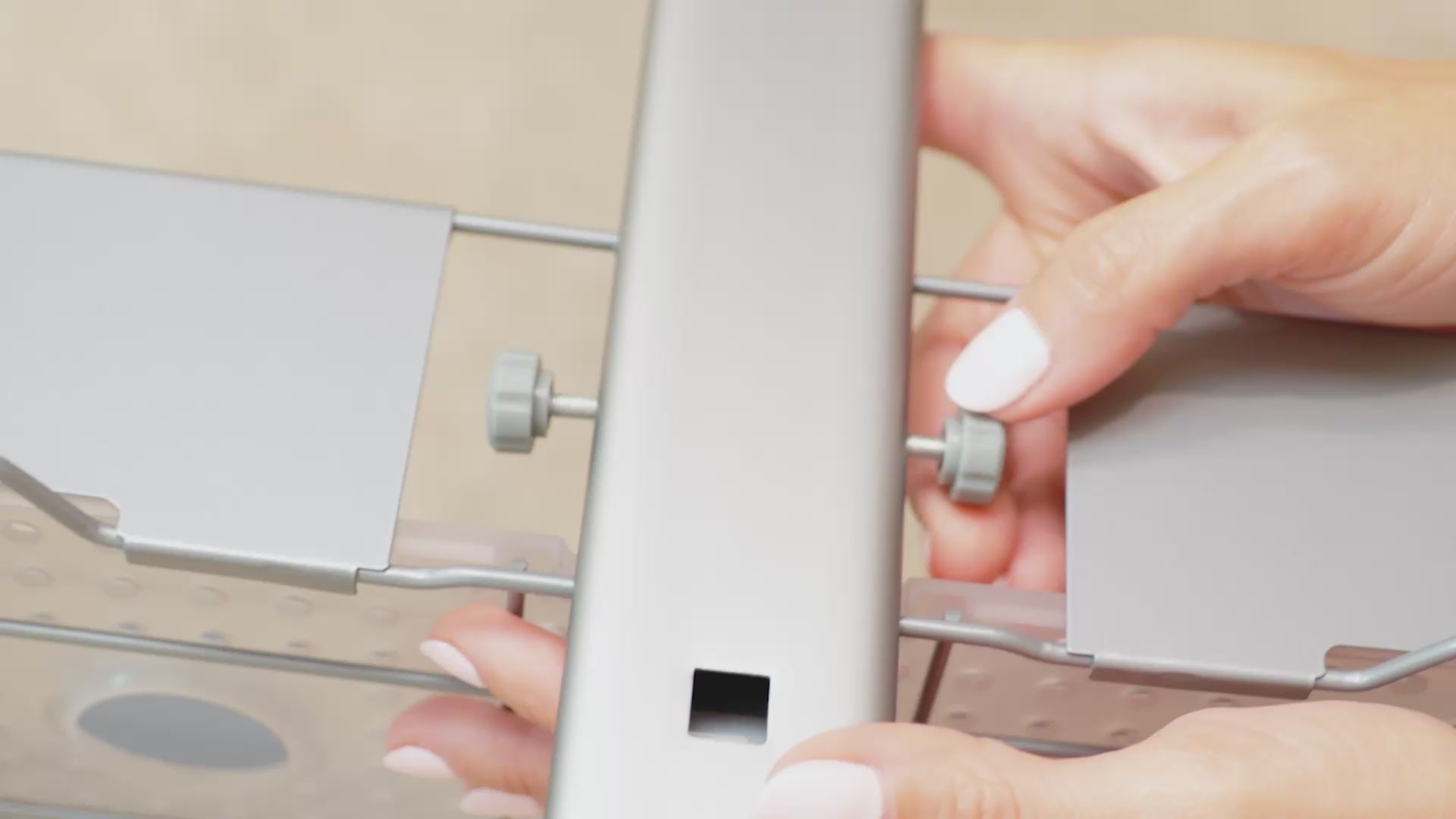

Turn the Tension Screws to secure the shelf in place. Hand-tighten fully after adjusting to fit your items.
STEP 10

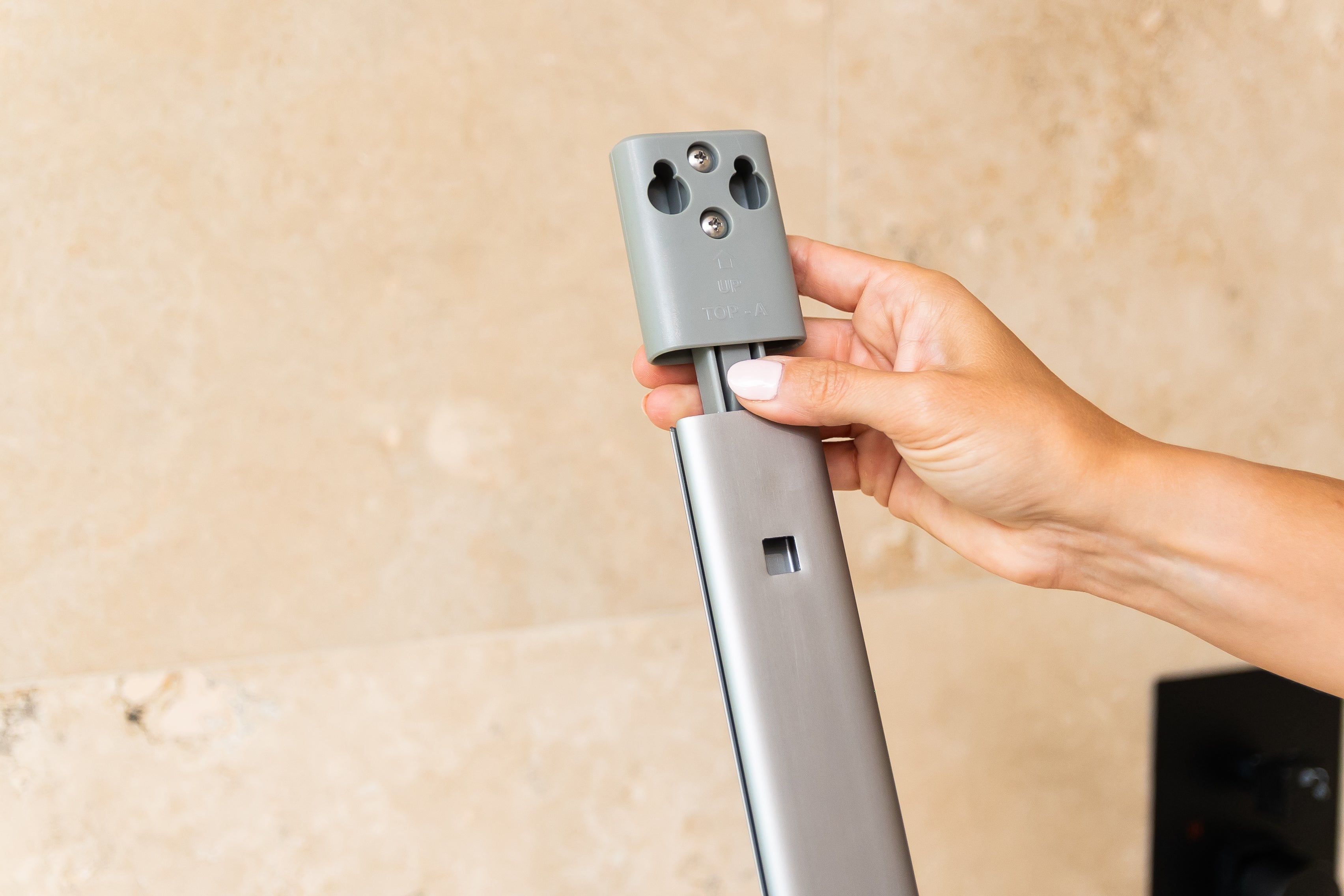

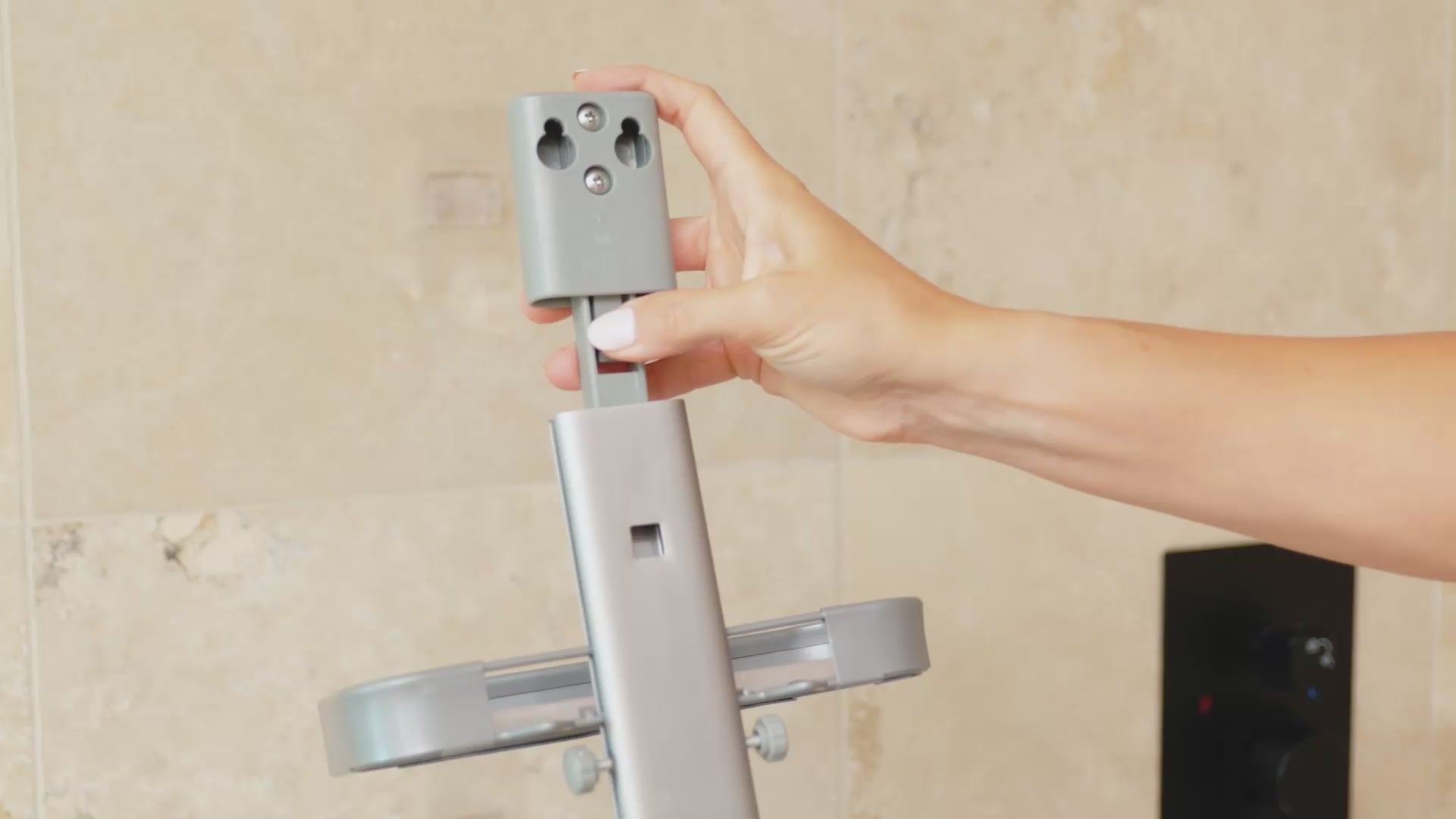

With all shelves in place, insert Top End Cap (A) and Bottom (C) into Rails. Make sure End Caps lock into the notch.
STEP 11
After the Wall Mounts (H) have cured, align the six keyholes on the back of parts A, B, and C with the wall hooks, then slide down until they click into place.
STEP 12

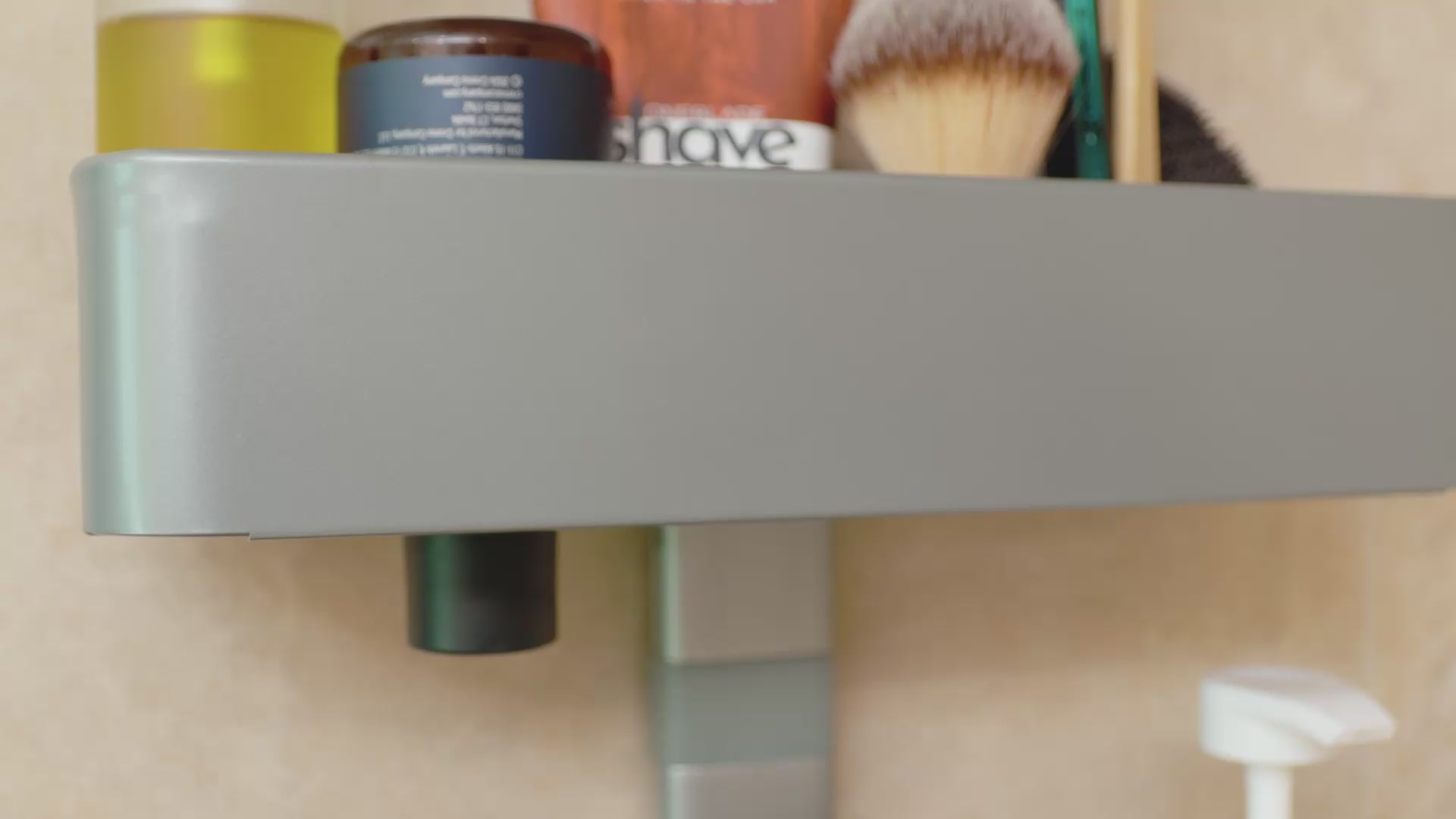

Magnetic Hooks (I) stick to any shelf wall—perfect for loofahs, razors, and more. You can still adjust the shelf height by loosening the tension screws, sliding the shelf up or down, and tightening the screws fully.
